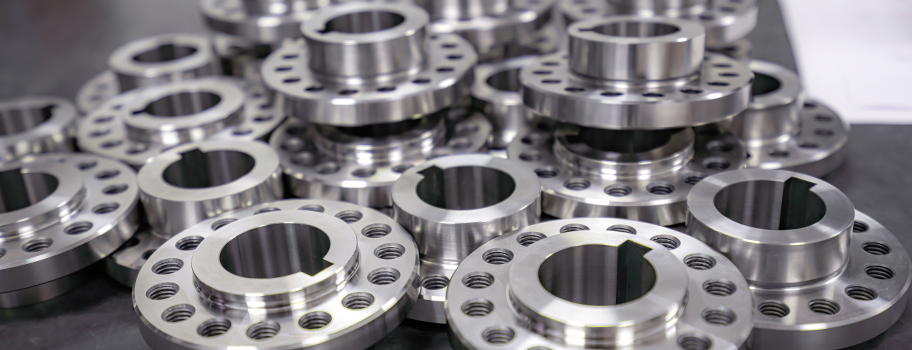

FLANGES

• Slip-On Flange Slips over the pipe; easy to install and weld.
• Weld Neck Flange High strength, used in high-pressure and high-temperature systems.
• Blind Flange Closes the end of a piping system.
• Socket Weld Flange For small-size, high-pressure systems; pipe is inserted into socket.
• Threaded Flange Screws onto threaded pipe without welding; used in low-pressure systems.
• Lap Joint Flange Used with stub ends; allows rotation for bolt alignment.
• Orifice Flange For flow measurement in pipelines using an orifice meter.
